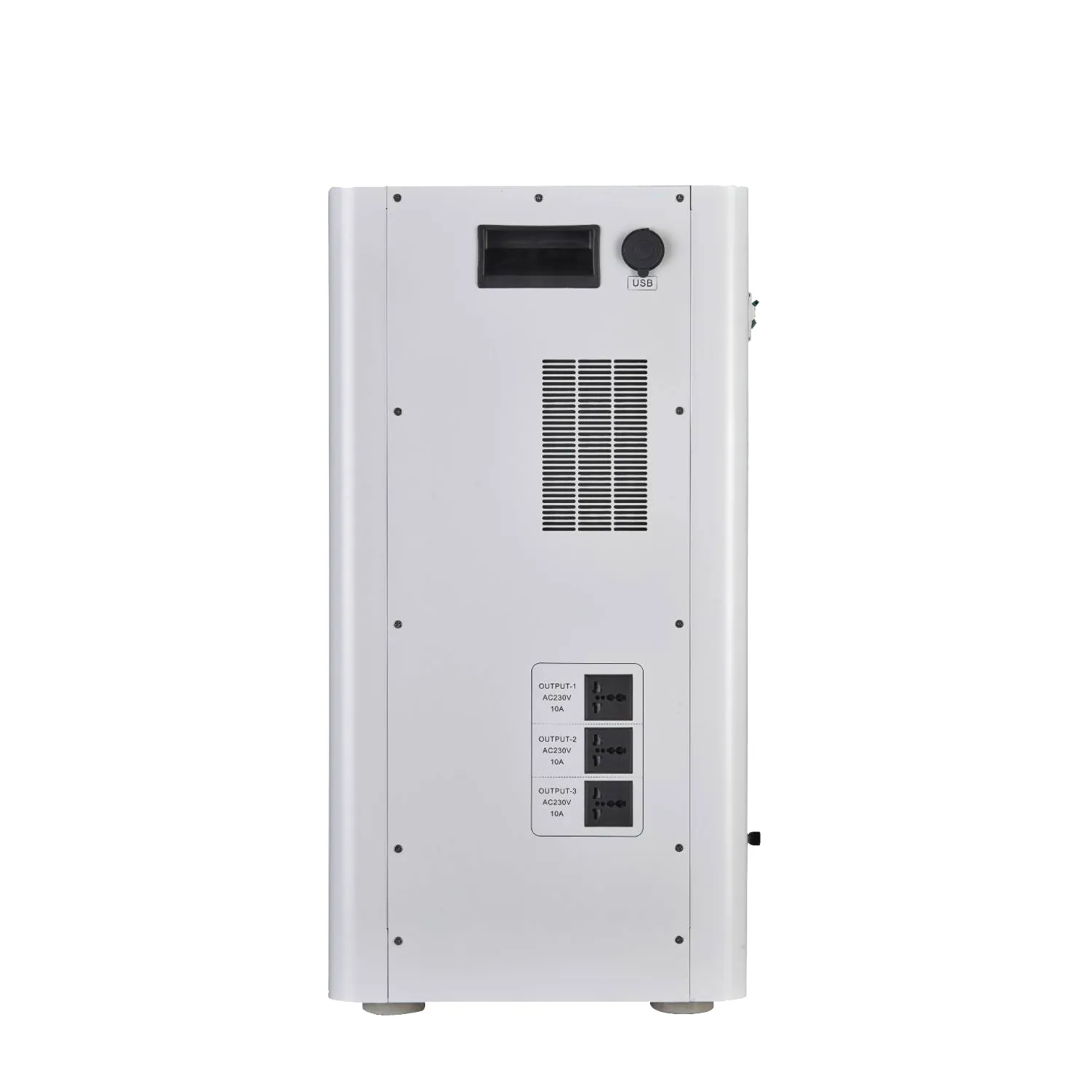

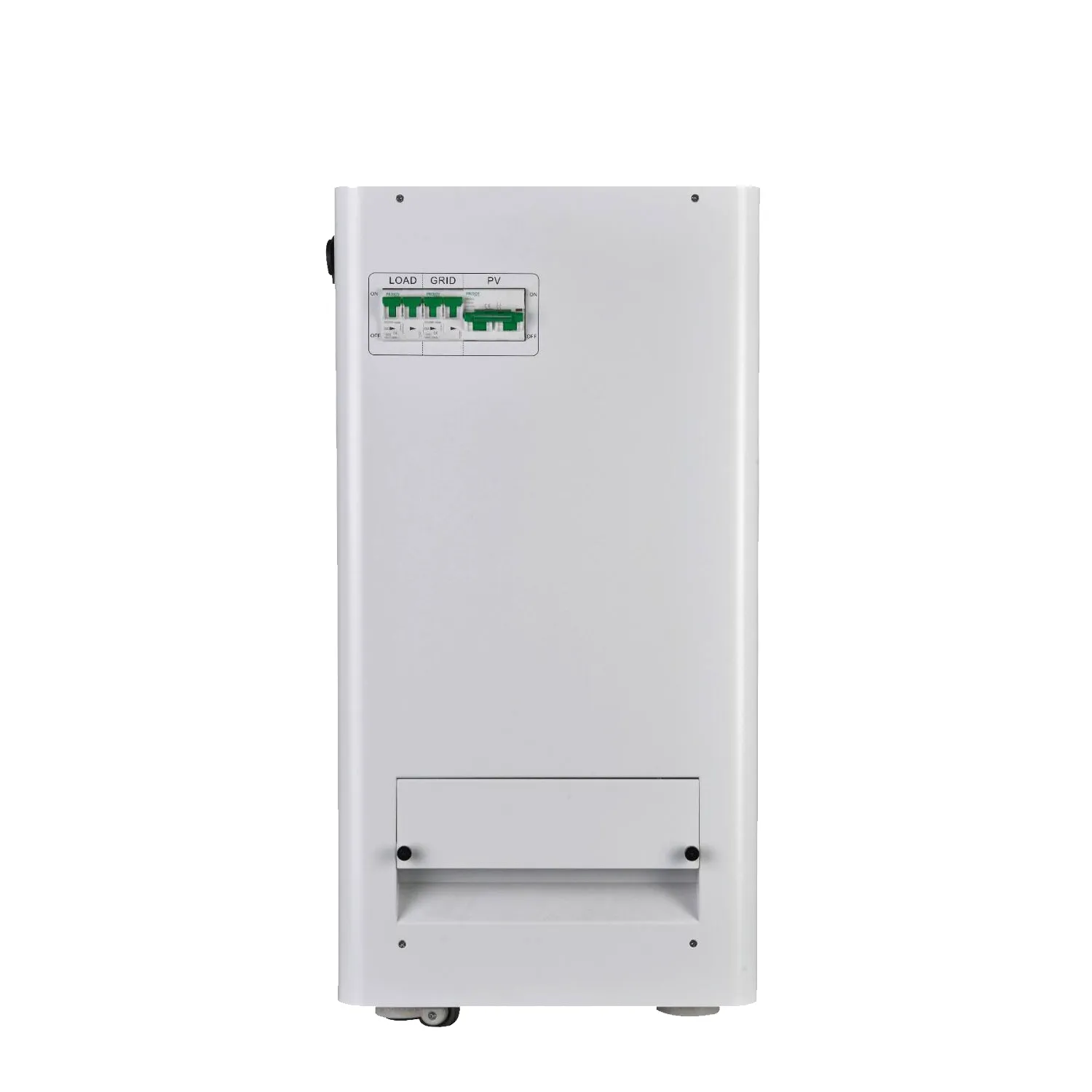

5KW off-grid UPS home battery

5kwh UPS home battery

Quick Information
  • Brand: IPStank
  • Voltage: 220V
  • Capacity: 4.8Kwh
  • Battery type: LiFePO4
  • Certification: CE RoHS TUV SAA FCC UL ETL PSE C-tick UN38.3 MSDS

Voltage 230VAC
Voltage Range 110-280VAC
Frequency Range 50Hz / 60Hz (auto sensing)
AC Voltage Regulation 230VAC ±5%
Output THDv ≤3% for linear load, ≤8% for non-linear load
Surge power 10000VA for 5 sec
Efficiency (peak) 93% at Line mode, 90% at Battery Mode
Transfer Time Oms
Waveform Pure sine wave
Voltage 48VDC
Voltage Range 42-54.8V
Capacity 4.8kWh
Cycle Life ⩾6000
Battery Protection Over-current / Over-voltage / Short-circuit / Under-voltage / Over temperature
Max continue charge current 60A
Max continue discharge current 100A
Charge temperature 0-55℃
Discharge temperature -20-60℃
Solar charge & AC charge
Solar charger type MPPT
Max PV Array open Circuit Voltage 145VDC
Max PV Array power 4000W
MPP Range @ Operationg voltage 60-115 VDC
Max solar charge current 80A
Max AC Charge current 60A
Max charge current 140A
 Output ports
PV input 1
AC input 1
AC output 3
Wireless charging 15W x 2
Dimension 380*380*750 mm
Net Weight 77KG
IP Protection IP21
Installation Floor Mounted
Humidity 5% to 95% Relative Humidity (No condensing)
Operating Temperature 0~55℃
Storage Temperature -15~60℃
Warranty 5 years
Life Span 10 years

---UPS function
---1H fast charge
---Up to 8 batteries
---Wifi/Bluetooth APP
