10KWH wall-mounted home energy storage battery

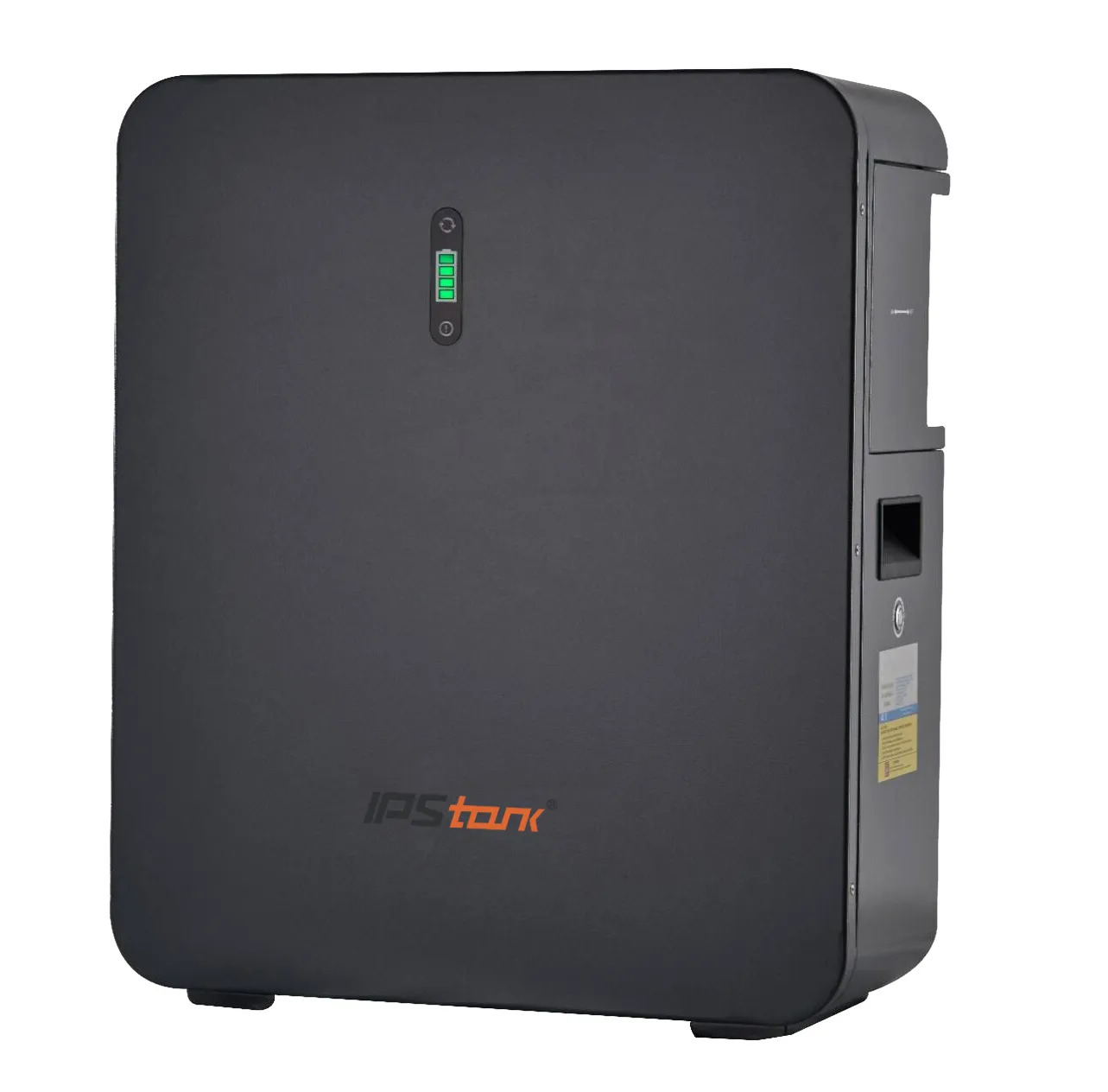

5kw-home-battery

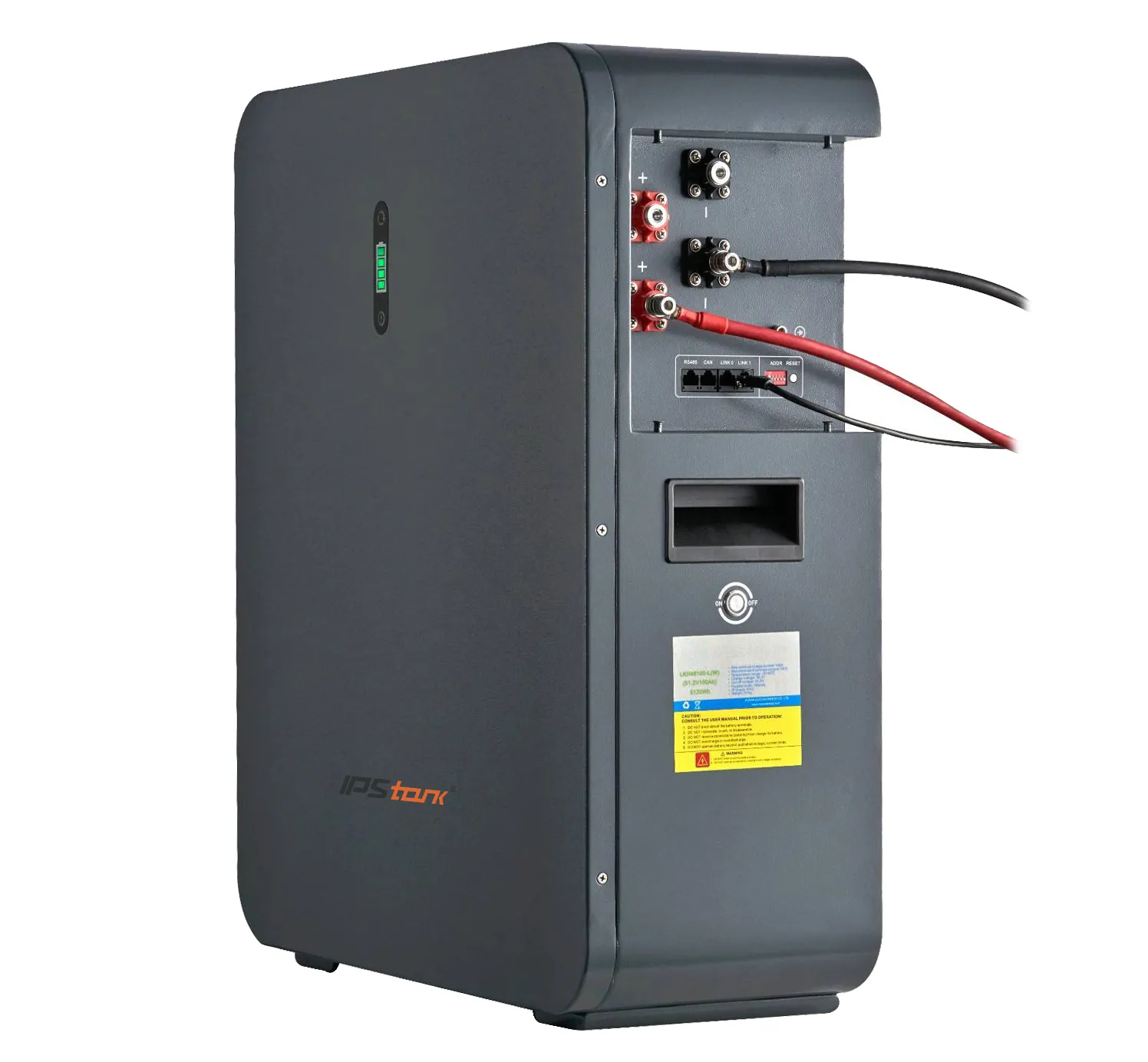

10kw-home-battery
wall-mounted solar battery

Quick Information
  • Brand: IPStank
  • Battery voltage: 51.2V
  • Capacity: 200Ah
  • Battery type: LiFePO4
  • Certification: CE RoHS TUV SAA FCC UL ETL PSE C-tick UN38.3 MSDS
SEND INQUIRY

Description

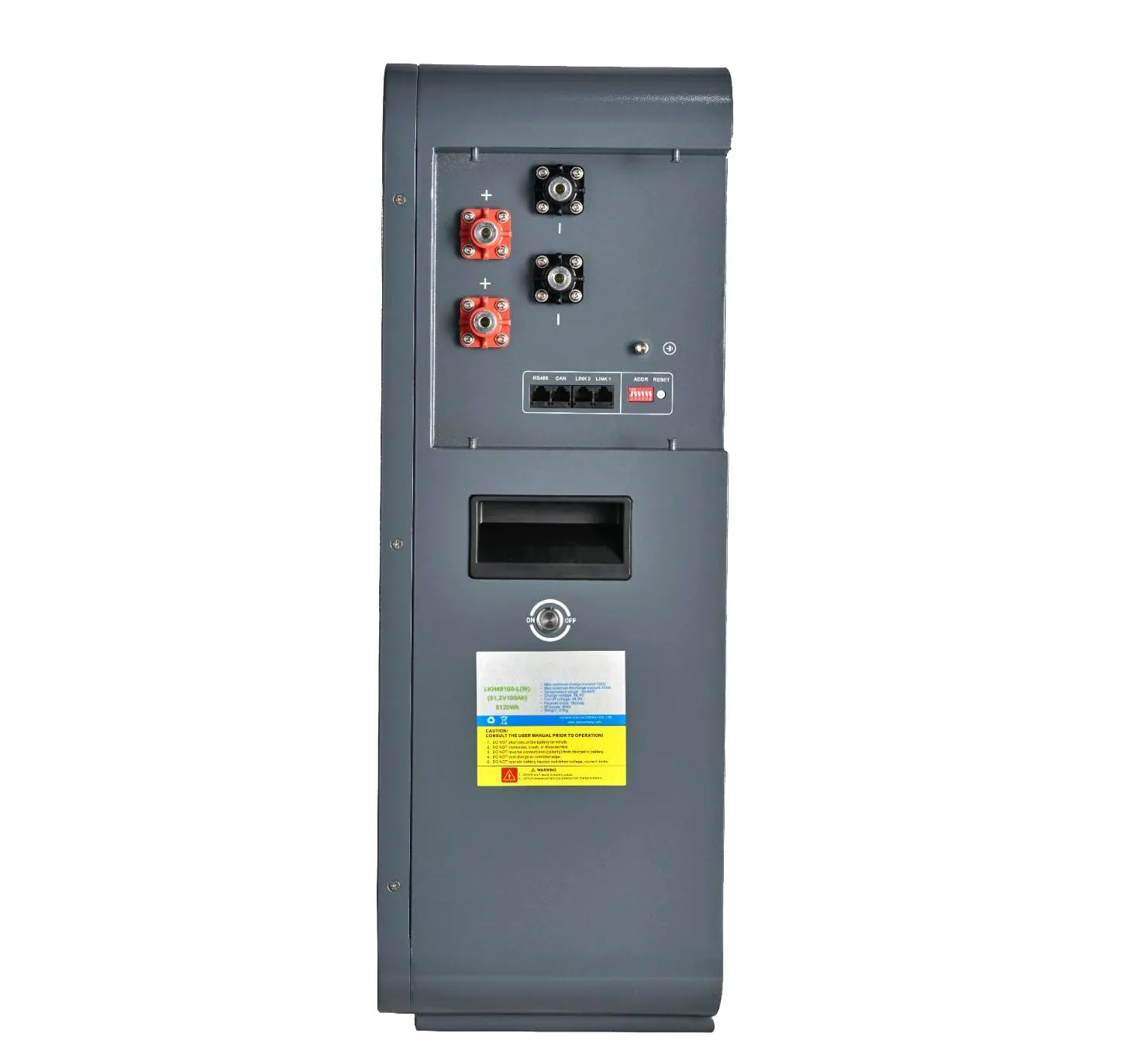

5kwh-wall-mounted-home-battery

Advantage

Wall-mounted batteries offer numerous advantages for energy storage solutions. Firstly, their compact design allows for easy installation and integration into any space, making them suitable for both residential and commercial applications. They help optimize space utilization and eliminate the need for additional floor space.

Secondly, wall-mounted batteries provide reliable backup power during outages, ensuring uninterrupted electricity supply for critical appliances and systems. This enhances safety, security, and comfort, especially in areas prone to power disruptions.

Additionally, wall-mounted batteries enable efficient energy management by storing excess energy generated from renewable sources, such as solar panels. This stored energy can be utilized during peak demand periods or when renewable energy production is low, reducing reliance on the grid and maximizing self-consumption.

Moreover, wall-mounted batteries contribute to a greener future by promoting the integration of renewable energy sources. They allow homeowners and businesses to reduce their carbon footprint and reliance on fossil fuels, leading to a more sustainable and environmentally friendly energy system.

Overall, the benefits of wall-mounted batteries include space-saving design, reliable backup power, efficient energy management, and a positive environmental impact. They empower individuals and businesses to embrace renewable energy and achieve greater energy independence.



Specification

Nominal Capacity 100AH 200AH
Nominal Voltage 51.2V 51.2V
Energy 5.12kWh 10.24kWh
Voltage 44.8~58.4Vdc 44.8~58.4Vdc
Standard Charge Current 50A 100A
Max.Charge Current 100A 200A
Standard Discharge Current 50A 100A
Max. Continues Discharge Current 100A 200A
Peak Current 150A≤5S 150A≤5S
Module Parallel UP to 16 packs
Cycle Life 6000 times, 25℃(80%DOD)
Working temperature Rang Charge 0℃-55℃. Discharge -20℃-60℃
Storage Temperature -10℃~~~50℃
Communication CAN/RS485
Battery Protection Over-current/over-voltage/short circuit/under-voltage/over temperature
Dimension H615*W510*D170mm H665*W550*D235mm
Weight Approx. 51KG Approx. 91KG
Installation Wall Floor
Warranty 5 years
Life Span ﹥10 years

Features:
---UPS function
---1H fast charge
---Up to 8 batteries
---Wifi/Bluetooth APP
